gp_dither.gen.h File Reference

Dithering algorithms. More...

#include <filters/gp_filter.h>

Go to the source code of this file.

Typedefs
typedef enum gp_dither_type	gp_dither_type
	Dithering types.

Enumerations
enum	gp_dither_type {   GP_DITHER_FLOYD_STEINBERG , GP_DITHER_ATKINSON , GP_DITHER_SIERRA , GP_DITHER_SIERRA_LITE ,   GP_DITHER_HILBERT_PEANO , GP_DITHER_BAYER_4 , GP_DITHER_SHARPENED_BAYER_4 , GP_DITHER_BAYER_8 ,   GP_DITHER_SHARPENED_BAYER_8 , GP_DITHER_MAX }
	Dithering types. More...

Functions
gp_dither_type	gp_dither_type_by_name (const char *dither_name)
	Returns dithering type by name.
const char *	gp_dither_type_name (gp_dither_type dither_type)
	Returns dithering name for a given dithering type.
int	gp_filter_dither (gp_dither_type type, const gp_pixmap *src, gp_pixmap *dst, gp_progress_cb *callback)
	Runs dithering from src->pixel_type to dst->pixel_type.
gp_pixmap *	gp_filter_dither_alloc (gp_dither_type type, const gp_pixmap *src, gp_pixel_type pixel_type, gp_progress_cb *callback)
	Allocates dst and runs dithering from src->pixel_type to pixel_type.
int	gp_filter_floyd_steinberg (const gp_pixmap *src, gp_pixmap *dst, gp_progress_cb *callback)
	Runs floyd_steinberg dithering from src::pixel_type to dst::pixel_type.
static gp_pixmap *	gp_filter_floyd_steinberg_alloc (const gp_pixmap *src, gp_pixel_type pixel_type, gp_progress_cb *callback)
	Allocates dst and runs floyd_steinberg dithering from src->pixel_type to dst->pixel_type.
int	gp_filter_atkinson (const gp_pixmap *src, gp_pixmap *dst, gp_progress_cb *callback)
	Runs atkinson dithering from src::pixel_type to dst::pixel_type.
static gp_pixmap *	gp_filter_atkinson_alloc (const gp_pixmap *src, gp_pixel_type pixel_type, gp_progress_cb *callback)
	Allocates dst and runs atkinson dithering from src->pixel_type to dst->pixel_type.
int	gp_filter_sierra (const gp_pixmap *src, gp_pixmap *dst, gp_progress_cb *callback)
	Runs sierra dithering from src::pixel_type to dst::pixel_type.
static gp_pixmap *	gp_filter_sierra_alloc (const gp_pixmap *src, gp_pixel_type pixel_type, gp_progress_cb *callback)
	Allocates dst and runs sierra dithering from src->pixel_type to dst->pixel_type.
int	gp_filter_sierra_lite (const gp_pixmap *src, gp_pixmap *dst, gp_progress_cb *callback)
	Runs sierra_lite dithering from src::pixel_type to dst::pixel_type.
static gp_pixmap *	gp_filter_sierra_lite_alloc (const gp_pixmap *src, gp_pixel_type pixel_type, gp_progress_cb *callback)
	Allocates dst and runs sierra_lite dithering from src->pixel_type to dst->pixel_type.
int	gp_filter_hilbert_peano (const gp_pixmap *src, gp_pixmap *dst, gp_progress_cb *callback)
	Runs hilbert_peano dithering from src::pixel_type to dst::pixel_type.
static gp_pixmap *	gp_filter_hilbert_peano_alloc (const gp_pixmap *src, gp_pixel_type pixel_type, gp_progress_cb *callback)
	Allocates dst and runs hilbert_peano dithering from src->pixel_type to dst->pixel_type.
int	gp_filter_bayer_4 (const gp_pixmap *src, gp_pixmap *dst, gp_progress_cb *callback)
	Runs bayer_4 dithering from src::pixel_type to dst::pixel_type.
static gp_pixmap *	gp_filter_bayer_4_alloc (const gp_pixmap *src, gp_pixel_type pixel_type, gp_progress_cb *callback)
	Allocates dst and runs bayer_4 dithering from src->pixel_type to dst->pixel_type.
int	gp_filter_sharpened_bayer_4 (const gp_pixmap *src, gp_pixmap *dst, gp_progress_cb *callback)
	Runs sharpened_bayer_4 dithering from src::pixel_type to dst::pixel_type.
static gp_pixmap *	gp_filter_sharpened_bayer_4_alloc (const gp_pixmap *src, gp_pixel_type pixel_type, gp_progress_cb *callback)
	Allocates dst and runs sharpened_bayer_4 dithering from src->pixel_type to dst->pixel_type.
int	gp_filter_bayer_8 (const gp_pixmap *src, gp_pixmap *dst, gp_progress_cb *callback)
	Runs bayer_8 dithering from src::pixel_type to dst::pixel_type.
static gp_pixmap *	gp_filter_bayer_8_alloc (const gp_pixmap *src, gp_pixel_type pixel_type, gp_progress_cb *callback)
	Allocates dst and runs bayer_8 dithering from src->pixel_type to dst->pixel_type.
int	gp_filter_sharpened_bayer_8 (const gp_pixmap *src, gp_pixmap *dst, gp_progress_cb *callback)
	Runs sharpened_bayer_8 dithering from src::pixel_type to dst::pixel_type.
static gp_pixmap *	gp_filter_sharpened_bayer_8_alloc (const gp_pixmap *src, gp_pixel_type pixel_type, gp_progress_cb *callback)
	Allocates dst and runs sharpened_bayer_8 dithering from src->pixel_type to dst->pixel_type.

Detailed Description

Dithering algorithms.

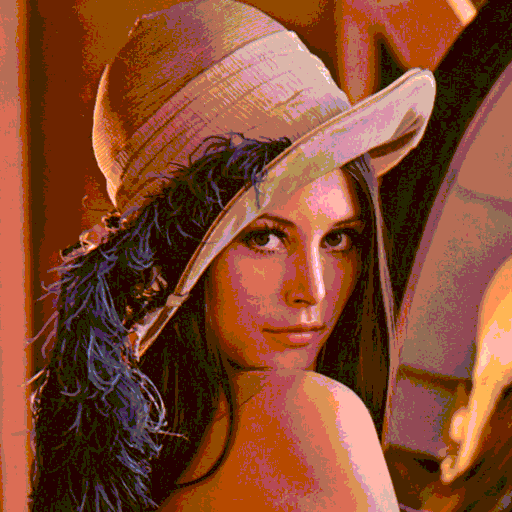

Simple Conversion

Original Image	RGB332	G8	G4	G2	G1

Floyd Steinberg Dithering

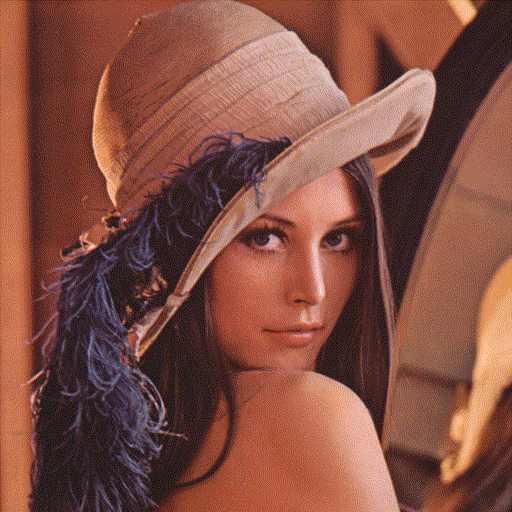

Original Image	RGB332	G8	G4	G2	G1

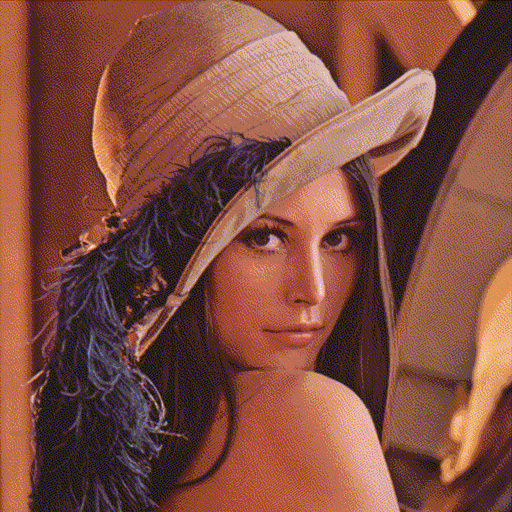

Atkinson Dithering

Original Image	RGB332	G8	G4	G2	G1

Sierra Dithering

Original Image	RGB332	G8	G4	G2	G1

Sierra Lite Dithering

Original Image	RGB332	G8	G4	G2	G1

Hilbert Peano Dithering

Original Image	RGB332	G8	G4	G2	G1

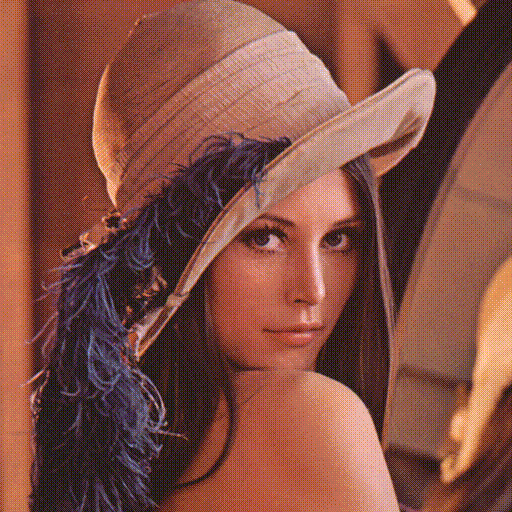

Ordered Bayer 4x4

Original Image	RGB332	G8	G4	G2	G1

Ordered Sharpened Bayer 4x4

Original Image	RGB332	G8	G4	G2	G1

Ordered Bayer 8x8

Original Image	RGB332	G8	G4	G2	G1

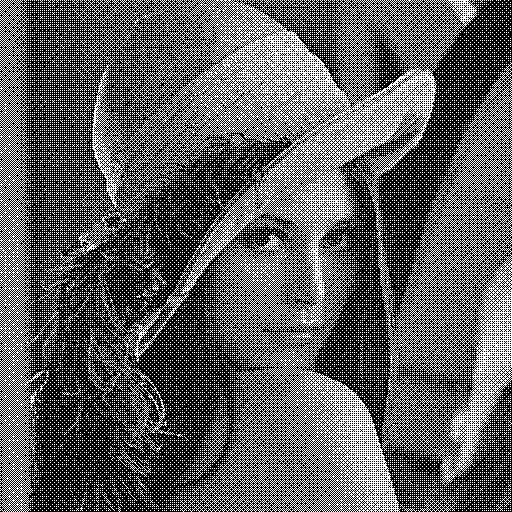

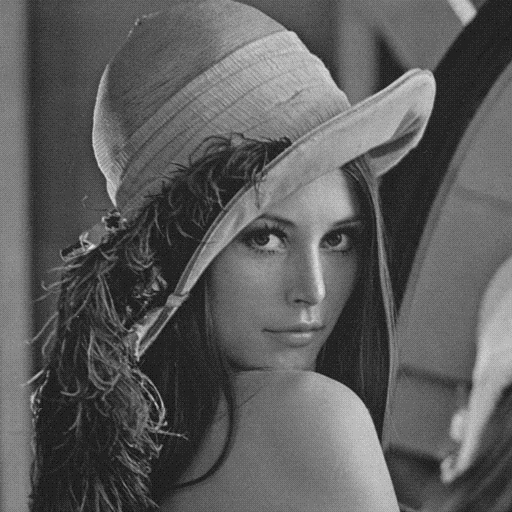

Ordered Sharpened Bayer 8x8

Original Image	RGB332	G8	G4	G2	G1

Definition in file gp_dither.gen.h.

Enumeration Type Documentation

gp_dither_type

enum gp_dither_type

Dithering types.

Enumerator
GP_DITHER_FLOYD_STEINBERG	Classical Floyd-Steinberg. Error distribution: | | X | 7/16 | |------|-------|-------| | 3/16 | 5/16 | 1/16 |
GP_DITHER_ATKINSON	Modified Atkinson dithering. Distributes only 7/8 of the error, result has best contrast, but large areas may be "washed out" and the image tends to be darker. I've found that the original Atkinson that distributes 6/8 of the error tends to be too dark and that distributing 7/8 works better. Error distribution: | | X | 1/8 | 1/8 | |------|-------|-------|------| | 1/8 | 1/8 | 1/8 | | |------|-------|-------|------| | 1/8 | 1/8 | | | ^ This is zero in the original Atkinson.
GP_DITHER_SIERRA	A sierra dithering. Sierra, produces shaper than Floyd-Steinberg, sometimes with less patterns. Generally preferable for small image sizes. Error distribution: | | | X | 5/32 | 3/32 | |------|------|------|------|------| | 2/32 | 4/32 | 5/32 | 4/32 | 2/32 | |------|------|------|------|------| | | 2/32 | 3/32 | 2/32 | |
GP_DITHER_SIERRA_LITE	A sierra lite dithering. Sierra Lite, comparable to Floyd-Steinberg, result is sometimes slightly sharper. Error distribution: | | X | 2/4 | |-----|-----|-----| | 1/4 | 1/4 | |
GP_DITHER_HILBERT_PEANO	A hilbert-peano dithering. Distributes error along Hilbert curve, produces no patterns on photos, but the end result is less sharp. Does not work well when large areas filed with the same color, since the hilbert curve may end up leaking into the resulting picture.
GP_DITHER_BAYER_4	Ordered dithering with 4x4 bayer matrix.
GP_DITHER_SHARPENED_BAYER_4	Ordered dithering with 4x4 bayer matrix. Bayer dithering with in-place sharpening.
GP_DITHER_BAYER_8	Ordered dithering with 8x8 bayer matrix.
GP_DITHER_SHARPENED_BAYER_8	Ordered dithering with 8x8 bayer matrix. Bayer dithering with in-place sharpening.
GP_DITHER_MAX	Number of dithering types. Last valid types is GP_DITHER_MAX-1.

Definition at line 29 of file gp_dither.gen.h.

Function Documentation

gp_dither_type_by_name()

gp_dither_type gp_dither_type_by_name

(

const char *

dither_name

)

Returns dithering type by name.

The lookup is not case sensitive and also works for two letter acronyms of the ditherings. The indended usage for two letter acronyms are shorter command line options, e.g. '-d at'.

Canonical name	Acronym
Floyd Steinberg	fs
Atkinson	at
Sierra	si
Sierra Lite	sl
Hilbert Peano	hp
Bayer 4x4	b4
Sharpened Bayer 4x4	s4
Bayer 8x8	b8
Sharpened Bayer 8x8	s8

Parameters

dither_name

A dithering name.

Returns

Dithering type or GP_DITHER_MAX on invalid name.

gp_dither_type_name()

const char * gp_dither_type_name

(

gp_dither_type

dither_type

)

Returns dithering name for a given dithering type.

Parameters

dither_type

A dithering type id.

Returns

A canonical name for a dithering.

gp_filter_atkinson()

int gp_filter_atkinson	(	const gp_pixmap *	src,
		gp_pixmap *	dst,
		gp_progress_cb *	callback )

Runs atkinson dithering from src::pixel_type to dst::pixel_type.

Returns

Zero on success, non-zero on invalid type or aborted filter.

gp_filter_atkinson_alloc()

static gp_pixmap * gp_filter_atkinson_alloc ( const gp_pixmap * src, gp_pixel_type pixel_type, gp_progress_cb * callback )

inlinestatic

Allocates dst and runs atkinson dithering from src->pixel_type to dst->pixel_type.

Returns

Newly allocated pixmap on success, NULL on invalid type or aborted filter.

Definition at line 217 of file gp_dither.gen.h.

References GP_DITHER_ATKINSON, and gp_filter_dither_alloc().

gp_filter_bayer_4()

int gp_filter_bayer_4	(	const gp_pixmap *	src,
		gp_pixmap *	dst,
		gp_progress_cb *	callback )

Runs bayer_4 dithering from src::pixel_type to dst::pixel_type.

Returns

Zero on success, non-zero on invalid type or aborted filter.

gp_filter_bayer_4_alloc()

static gp_pixmap * gp_filter_bayer_4_alloc ( const gp_pixmap * src, gp_pixel_type pixel_type, gp_progress_cb * callback )

inlinestatic

Allocates dst and runs bayer_4 dithering from src->pixel_type to dst->pixel_type.

Returns

Newly allocated pixmap on success, NULL on invalid type or aborted filter.

Definition at line 301 of file gp_dither.gen.h.

References GP_DITHER_BAYER_4, and gp_filter_dither_alloc().

gp_filter_bayer_8()

int gp_filter_bayer_8	(	const gp_pixmap *	src,
		gp_pixmap *	dst,
		gp_progress_cb *	callback )

Runs bayer_8 dithering from src::pixel_type to dst::pixel_type.

Returns

Zero on success, non-zero on invalid type or aborted filter.

gp_filter_bayer_8_alloc()

static gp_pixmap * gp_filter_bayer_8_alloc ( const gp_pixmap * src, gp_pixel_type pixel_type, gp_progress_cb * callback )

inlinestatic

Allocates dst and runs bayer_8 dithering from src->pixel_type to dst->pixel_type.

Returns

Newly allocated pixmap on success, NULL on invalid type or aborted filter.

Definition at line 343 of file gp_dither.gen.h.

References GP_DITHER_BAYER_8, and gp_filter_dither_alloc().

gp_filter_dither()

int gp_filter_dither	(	gp_dither_type	type,
		const gp_pixmap *	src,
		gp_pixmap *	dst,
		gp_progress_cb *	callback )

Runs dithering from src->pixel_type to dst->pixel_type.

Returns

Zero on success, non-zero on invalid type or aborted filter.

gp_filter_dither_alloc()

gp_pixmap * gp_filter_dither_alloc	(	gp_dither_type	type,
		const gp_pixmap *	src,
		gp_pixel_type	pixel_type,
		gp_progress_cb *	callback )

Allocates dst and runs dithering from src->pixel_type to pixel_type.

Returns

Newly allocated pixmap on success, NULL on invalid type or aborted filter.

Referenced by gp_filter_atkinson_alloc(), gp_filter_bayer_4_alloc(), gp_filter_bayer_8_alloc(), gp_filter_floyd_steinberg_alloc(), gp_filter_hilbert_peano_alloc(), gp_filter_sharpened_bayer_4_alloc(), gp_filter_sharpened_bayer_8_alloc(), gp_filter_sierra_alloc(), and gp_filter_sierra_lite_alloc().

gp_filter_floyd_steinberg()

int gp_filter_floyd_steinberg	(	const gp_pixmap *	src,
		gp_pixmap *	dst,
		gp_progress_cb *	callback )

Runs floyd_steinberg dithering from src::pixel_type to dst::pixel_type.

Returns

Zero on success, non-zero on invalid type or aborted filter.

gp_filter_floyd_steinberg_alloc()

static gp_pixmap * gp_filter_floyd_steinberg_alloc ( const gp_pixmap * src, gp_pixel_type pixel_type, gp_progress_cb * callback )

inlinestatic

Allocates dst and runs floyd_steinberg dithering from src->pixel_type to dst->pixel_type.

Returns

Newly allocated pixmap on success, NULL on invalid type or aborted filter.

Definition at line 196 of file gp_dither.gen.h.

References GP_DITHER_FLOYD_STEINBERG, and gp_filter_dither_alloc().

gp_filter_hilbert_peano()

int gp_filter_hilbert_peano	(	const gp_pixmap *	src,
		gp_pixmap *	dst,
		gp_progress_cb *	callback )

Runs hilbert_peano dithering from src::pixel_type to dst::pixel_type.

Returns

Zero on success, non-zero on invalid type or aborted filter.

gp_filter_hilbert_peano_alloc()

static gp_pixmap * gp_filter_hilbert_peano_alloc ( const gp_pixmap * src, gp_pixel_type pixel_type, gp_progress_cb * callback )

inlinestatic

Allocates dst and runs hilbert_peano dithering from src->pixel_type to dst->pixel_type.

Returns

Newly allocated pixmap on success, NULL on invalid type or aborted filter.

Definition at line 280 of file gp_dither.gen.h.

References GP_DITHER_HILBERT_PEANO, and gp_filter_dither_alloc().

gp_filter_sharpened_bayer_4()

int gp_filter_sharpened_bayer_4	(	const gp_pixmap *	src,
		gp_pixmap *	dst,
		gp_progress_cb *	callback )

Runs sharpened_bayer_4 dithering from src::pixel_type to dst::pixel_type.

Returns

Zero on success, non-zero on invalid type or aborted filter.

gp_filter_sharpened_bayer_4_alloc()

static gp_pixmap * gp_filter_sharpened_bayer_4_alloc ( const gp_pixmap * src, gp_pixel_type pixel_type, gp_progress_cb * callback )

inlinestatic

Allocates dst and runs sharpened_bayer_4 dithering from src->pixel_type to dst->pixel_type.

Returns

Newly allocated pixmap on success, NULL on invalid type or aborted filter.

Definition at line 322 of file gp_dither.gen.h.

References GP_DITHER_SHARPENED_BAYER_4, and gp_filter_dither_alloc().

gp_filter_sharpened_bayer_8()

int gp_filter_sharpened_bayer_8	(	const gp_pixmap *	src,
		gp_pixmap *	dst,
		gp_progress_cb *	callback )

Runs sharpened_bayer_8 dithering from src::pixel_type to dst::pixel_type.

Returns

Zero on success, non-zero on invalid type or aborted filter.

gp_filter_sharpened_bayer_8_alloc()

static gp_pixmap * gp_filter_sharpened_bayer_8_alloc ( const gp_pixmap * src, gp_pixel_type pixel_type, gp_progress_cb * callback )

inlinestatic

Allocates dst and runs sharpened_bayer_8 dithering from src->pixel_type to dst->pixel_type.

Returns

Newly allocated pixmap on success, NULL on invalid type or aborted filter.

Definition at line 364 of file gp_dither.gen.h.

References GP_DITHER_SHARPENED_BAYER_8, and gp_filter_dither_alloc().

gp_filter_sierra()

int gp_filter_sierra	(	const gp_pixmap *	src,
		gp_pixmap *	dst,
		gp_progress_cb *	callback )

Runs sierra dithering from src::pixel_type to dst::pixel_type.

Returns

Zero on success, non-zero on invalid type or aborted filter.

gp_filter_sierra_alloc()

static gp_pixmap * gp_filter_sierra_alloc ( const gp_pixmap * src, gp_pixel_type pixel_type, gp_progress_cb * callback )

inlinestatic

Allocates dst and runs sierra dithering from src->pixel_type to dst->pixel_type.

Returns

Newly allocated pixmap on success, NULL on invalid type or aborted filter.

Definition at line 238 of file gp_dither.gen.h.

References GP_DITHER_SIERRA, and gp_filter_dither_alloc().

gp_filter_sierra_lite()

int gp_filter_sierra_lite	(	const gp_pixmap *	src,
		gp_pixmap *	dst,
		gp_progress_cb *	callback )

Runs sierra_lite dithering from src::pixel_type to dst::pixel_type.

Returns

Zero on success, non-zero on invalid type or aborted filter.

gp_filter_sierra_lite_alloc()

static gp_pixmap * gp_filter_sierra_lite_alloc ( const gp_pixmap * src, gp_pixel_type pixel_type, gp_progress_cb * callback )

inlinestatic

Allocates dst and runs sierra_lite dithering from src->pixel_type to dst->pixel_type.

Returns

Newly allocated pixmap on success, NULL on invalid type or aborted filter.

Definition at line 259 of file gp_dither.gen.h.

References GP_DITHER_SIERRA_LITE, and gp_filter_dither_alloc().
